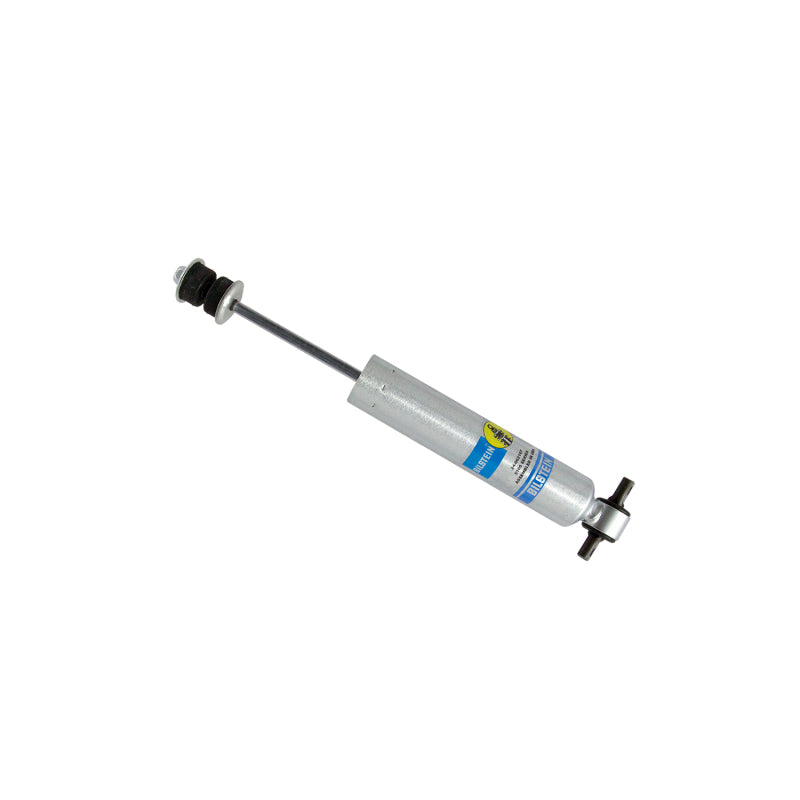

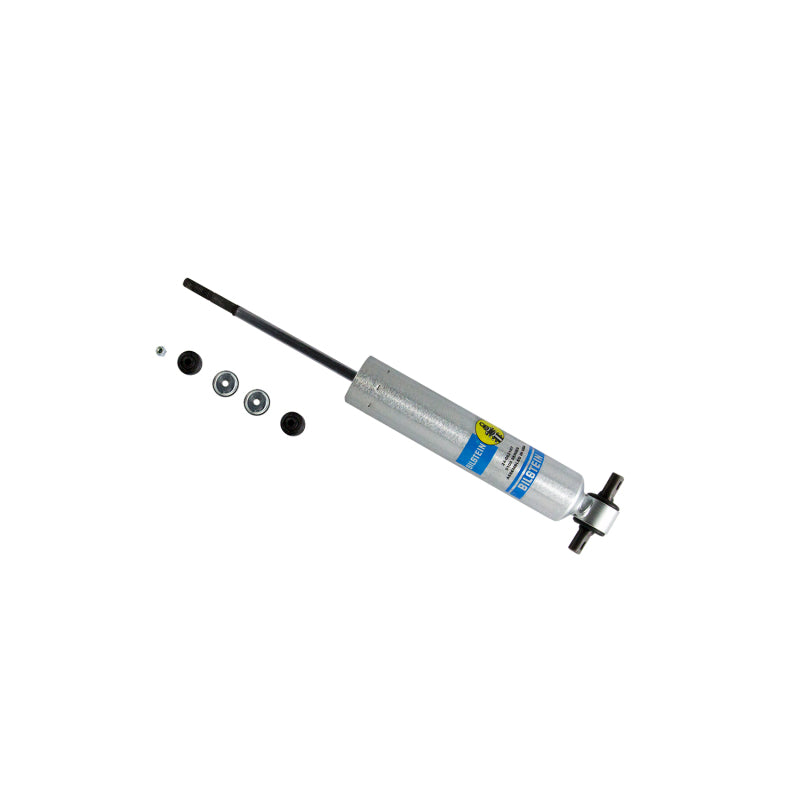

Bilstein 5100 Series 92-99 Suburban Base Front 46mm Monotube Shock Absorber 24-062107
Bilstein 5100 Series 92-99 Suburban Base Front 46mm Monotube Shock Absorber 24-062107
Regular price
$125.66 USD
Regular price
Sale price
$125.66 USD
Unit price
/
per
Couldn't load pickup availability
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
Chevrolet C1500 1988-1999, C1500 Suburban 1992-1999, Tahoe 1995-1999, GMC C1500 1988-1999, C1500 Suburban 1992-1999, Yukon 1995-1999
Chevrolet C1500 1988-1999, C1500 Suburban 1992-1999, Tahoe 1995-1999, GMC C1500 1988-1999, C1500 Suburban 1992-1999, Yukon 1995-1999
Collapsed Length (in) :10.04
Extended Length (in) :15.43
Collapsed Length (mm) :255.0
Extended Length (mm) :392.0
Stroke/travel Length (in) :5.39
Lower Mount Type :Bar Pin
Upper Mount Type :Stem
Internal Design :Monotube
Finish :Zinc Plated
Reservoir :No
Body Design :Smooth Body (Non-Coilover)
Body Diameter (od) :2.0 in.
Piston Diameter :46mm
Boot Included :No

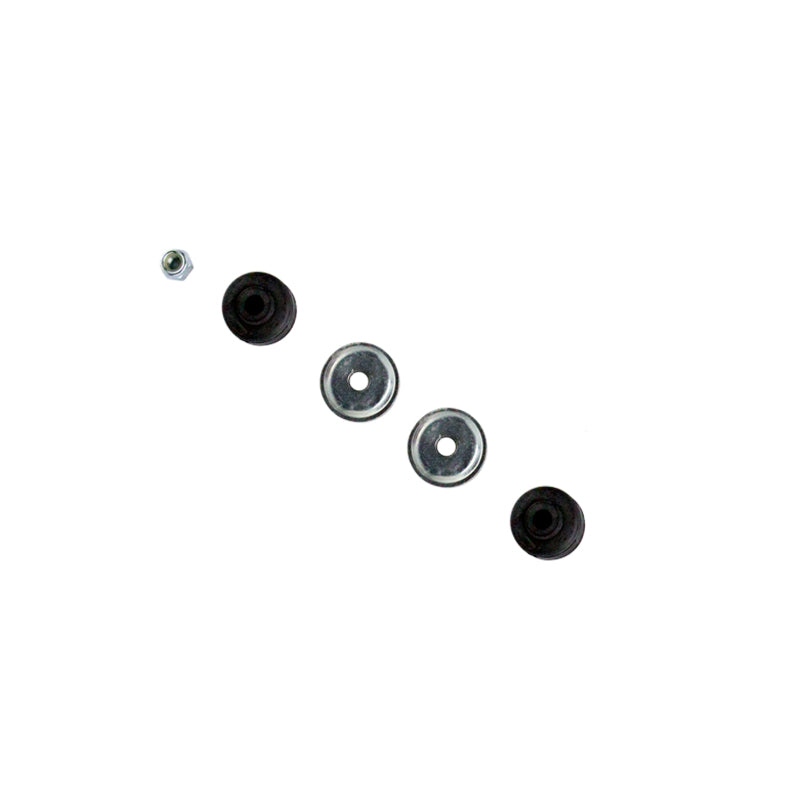

Replacement Mounting Kit :B4-KT1-Z136A00
Spring Seat Included :No
Shaft Diameter :11mm
Adjustable Damping :Non-Adjustable
Interchange Numbers
AutoZone 217808
Bilstein BE5-6210
Bilstein F4-BE5-6210-H7
BQNV 24062107
